“The Soddy”
Since my last update,
I’ve had the chance to read up on sod houses a little more. I’ve found little
information overall on constructing these homes, and was a little unclear on
one element of the construction. That being that when you get to the third row,
you should flip the sod bricks 90º perpendicular to the first two rows for stability,
and that you should do this every third row. The PDF link below
makes this clear, and in order to do this properly, you need sod strips
that when placed side by side, the two are the same length as they
are wide. In other words, let’s say 1’ wide by 2’ long. Lay the strips
side by side on the 1’ section, for a total of 2’ wide. Then when you place the
third row perpendicular to these two, it fits across them perfectly. But
the PDF link below will bring it into perspective if this does not make sense .
From my research, it
appears that most sod homes had a relatively short lifespan of perhaps 5
years or so, before needing major repairs, or a complete rebuild. Yet,
there are sod homes still standing that were built in the 19th century.
I don’t see any reason why a sod home built with the addition of inexpensive
modern materials (such as polyethylene plastic
sheeting) would not last for many years, if not decades, while being
water tight at the same time.
Sod homes, with their
two foot thick walls, were very warm in winter, and quite cool in the
summer. Many of the early plains homesteaders that lived in sod
homes, survived the first few winters comfortably, while many that did
not, perished. If I were to build a sod home, I would build it as a
dugout in order to take even greater advantage of the thermal properties of the
earth.
Here’s an example of

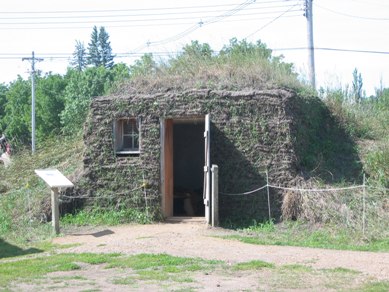

what I had in mind:
Probably the two best links
that I’ve found on sod home building:
As a final note, I’ll
add that when I started to write this post, I was rather enthused at the
prospect of building a sod house. As I type this out however, I’m
thinking that there are far better and more
practical ways to go. Obviously, the easiest way to go
about earth sheltered is to find an existing structure (i.e. an old
automobile, a large reinforced shipping crate, etc) and
partially bury, then cover over the remaining exposed
portion with straw flakes, and then lightly with
earth. Earth bag or tire structures also offer up a less costly option.
But at the time of this writing, I have little knowledge on tire
homes, and only slightly more on earth bag construction. So I have
some research ahead of me to learn the fundamentals, and can’t really comment
any further on these procedures at this point in time.
The perpendicular sod bricks "lock" the system together so as to keep it from tipping over. In this regard, diversity is your friend. Running bonding the bricks longitudinally, where the center of the brick above is located over the head joint of the bricks below, does the same thing. Instances where stacked bond is preferred a durawall structural wire product is installed between every other course. I suppose thing tree limbs with short extensions of branches from the sides could do the same sort of thing in a sod application.
ReplyDeleteFor making the sod last longer and stucco material can be applied to both interior and exterior surfaces. Clay is preferred because it is very dense and hard when properly dried or cured. Think, adobe. If possible, the clay stucco can be painted with several layers exterior grade latex paint to further the longevity.
If by polyethylene plastic sheeting, you mean construction grade visqueen, it is UV intolerant, as it is meant to be place under poured concrete and thus not susceptible yo UV, and will deteriorate in less than a year in direct sunlight.
Regarding interior temperatures. Materials themselves do not create heat or cold. The temperature of interior will be the same as the exterior in the absence of some sort of method to create heat or cold. There's a lot of misinformation, and warped assumptions, out there about this stuff.
There's a reason building designers go to school and then apprentice for some years, because constructing worthwhile buildings that are long term economical, structurally sound, physically comfortable, and meet the needs of the owner are not products of whim but rather a coordination of sciences, mathematics, history, and of course education and experience.
People that think they can arrogantly short-cut the process usually end up losing time, money, and effort, and maybe their lives. Building materials are heavy, if they collapse they can kill. I have designed and/or built more than 7,000 projects over a period of 46 years costing from about $500.00 to over $100,000,000.00.
"So I have some research ahead of me to learn the fundamentals, and can’t really comment any further on these procedures at this point in time."
ReplyDeleteI have to ask, "What is your goal"?
